Description

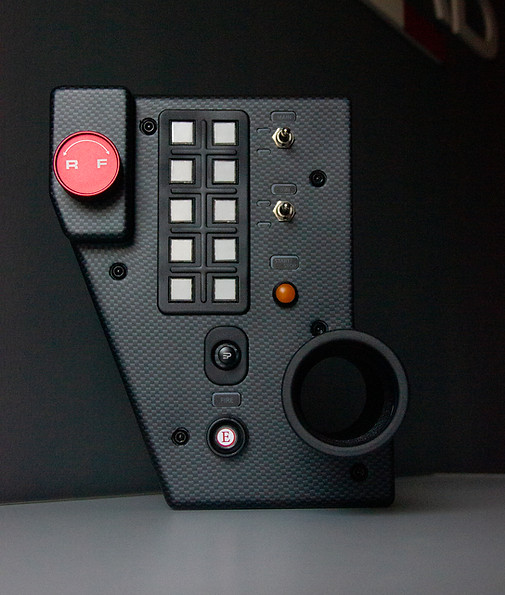

992 CF is the latest button box model designed by EPLAB which, as usual with our brand, directs our customers to obtain the maximum result between reality and simulation. With the creation of the 992 CF we tried to obtain the maximum extrapolation from the real button box of the very famous GT3 911(992) car. With an obsessive workmanship of the materials we managed to create a button box created on a single piece without the classic sandwich connections between the parts making it almost identical to the real one. After ABS printing the materials are processed with several layers of body fillers and primers after which they are immersed in the tanks for the transfer of the carbon texture and then covered and protected by a transparent opaque UV resistant.

Dimensions

Size: 290 x 266 x 78.2 mm


  •   Main 10 Button switches fixed white color

  •   30 RGB LEDs to manage the colors of IGN,MAIN,START/STOP and FIRE

  •   3 ROTARY ENCODERS

  •   2 Momentary switches

  •   1 Temporary switch

  •   13 Buttons

  •   1 Joycoder

​​

Features


V

The Simhub Software is required for the proper functioning of this device

GX12 USB Cable & RAM Bracket

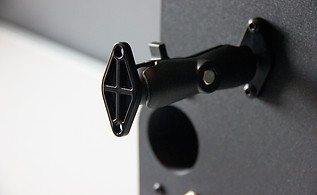

The GX12 USB Cable provides user-friendly connection. The RAM bracket is included in the package for a solid installation on aluminum profiles.

​​


Build Quality

Handcrafted One-Piece Carbon-Finished Display Unit
Each unit is entirely handcrafted, beginning with a precision 3D print, then refined and finished through a carbon fiber hydro dipping process. Unlike other designs that use multiple connected parts, this display is made from a single, solid piece for maximum durability and aesthetics. Thanks to the integrated RAM mount, the position is fully adjustable both vertically and horizontally. Equipped with 18 dimmable LEDs, the lighting is fully customizable and compatible with SimHub for immersive feedback.

What is included

  • 1 992 CF

  • 1 USB Cable 1.5 mt.

  • 1 Alluminum Bracket ( RAM )

  • 1 Set Screws

  • 1 Button Stickers

  • 1 Sticker EPLAB

PC Requirements

  • 1 USB Port

Compatibility

  • Fully compatible with all extrusion-based simulator rigs

Downloads
